Movements

Creating a movement using Animation mode

See also

• How to use the Animation Mode

Cannot be tested on a simulated robot.

---

This tutorial will show you how to create a movement using the Animation mode.

Create the following behavior: starting from the Init pose of the pose library, animate your robot in order to put it in the position of the famous sculpture called The thinker by Rodin.

Start Animation Mode and store the first position:

Step	Action
	Make sure you are connected to a real robot.
	Click the Set on/off the stiffness button in the toolbar. The icon should turn red , meaning your robot is stiffened.
	Put your robot into the Init position using the Pose library. Your robot in the Init pose should look like that:
	Create a new Timeline box.
	Double click the box in order to display the Timeline.
	Click the Animation mode button. The button turns red: , meaning the Animation Mode is on.
	Store the first position: push the Chest button or say “Store position” to your robot.

To define the second position, we will decompose the movement into several peaces:

Step	Action
	Hold your robot by the waist/torso to prevent it to fall down.
	Push the two foot bumpers to set off the Stiffness of the legs.
	Lower the torso in order to flex legs, your robot should look like that:
	Move the right foot forward and turn it a little on the right like in the following picture:
	Push the two foot bumpers in order to set on the Stiffness of the legs.
	Store the second position: push the Chest button or say “Store position” to your robot.

The next part of the movement will involve the arms and the head of the robot.

Step	Action
	Push the middle head tactile sensor in order to set off the stiffness of the head.
	Lower the head until it is no longer possible.
	Push the middle head tactile sensor in order to set on the stiffness of the head. Tilt the torso forward. Raise the right hand to the head.
	Enslave the robot and verify if the position is stable,
	If it is, store the position. If not, tilt the torso backward until the position remains stable and store the position. Your robot should look like that:
	Click the Animation mode button again to stop it, or touch all the Head tactile sensors. The button turns green: .

Test your behavior:

Step	Action
	In the Timeline panel, click the Play motion button.

tutorial_animation_mode.crg

Creating a movement from scratch

In Choregraphe, it is very easy to create simple movements in no time.

Step	Action	Further help
	Drag and drop the Template > Animation box onto the Flow diagram Panel.
	Double-click the box to enter it. An empty Timeline is displayed.
	Set the robot in a starting position.	To quickly set the robot in a position, you can click on a predefined position in Pose library panel.
	Right-click on the Frame 5 of the the Motion layer.	Having a keyframe at index 1 is not advised: it would mean that the robot, from an unknown position when entering the box, should go to this position in no time and the keyframe would probably be ignored.
	Click on one of the robot limbs to display the Motion widget. Note Whenever there is a current frame cursor (the blue line) on the Timeline, the motion editing is on.
	In the Motion widget, you can add some joint values of the selected limb in the current keyframe, moving a limb will automatically add the joint value to the selected keyframe.

Creating a movement with a real NAO robot to define the joints values

Cannot be tested on a simulated robot.

---

Warning

The Stiffness of Head motors have to be set off.

This tutorial explains how to use a real robot to create a movement.

We will see how to define joints values by moving the real robot.

Saving the head joints values using Motion widget

When you change the real NAO position, you can see that the virtual 3D NAO changes position too. Try to raise NAO’s arm for example.

Wouldn’t it be nice to use this feature to create position keyframes on a motion Timeline?

Now, let’s say we want NAO to move its head up in the first keyframe and to keep its arms down:

1. Click on the first keyframe

2. Click on the head of the virtual 3D NAO to open the Motion widget.

3. Move the real NAO robot head to the position you want.

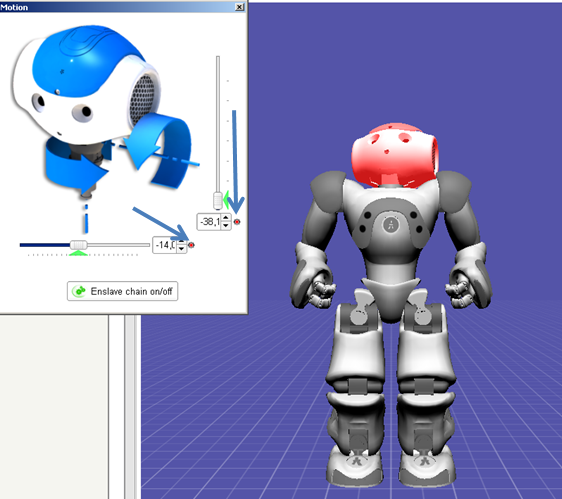

4. Click on the two record buttons of the Motion widget as in the following picture:



   The head joints values have been saved in the first keyframe.

Saving the arms joints values using the “Store joints in keyframe” options

1. Move the real NAO robot arms to put them down.

2. Click on Enslave all on/off in the Motion widget.

   The robot doesn’t move.

3. Right-click on the first keyframe and select the Store joints in keyframe option.

   Note

   This feature allows you to save the joints values of NAO: the joints of the whole body, the head, the arms or the legs.

4. As we want to save the joints values of the arms, click on Arms.



   The joints values of the arms have been saved in the first keyframe.

Raising the arms in a second keyframe

1. Left click the motion Timeline to change the current edition frame (the blue line).

   A second keyframe is displayed on the motion Timeline.

2. Move the real NAO robot arms to the position you want.

3. Click on Enslave all on/off in the Motion widget.

   The robot doesn’t move.

4. Right click on the second keyframe and select Store joints in keyframe > Arms.

   The joints values of the arms have been saved in the second keyframe.

Thanks to the Store joints in keyframe option, we were able to save the values of 8 joints (4 joints per arm) in a keyframe in only a single click.

Note

When you right-click on a keyframe, the Remove joints from keyframe option allows you to easily remove the joints values that have been saved in a keyframe. You can choose to remove the joints values of the whole body, or only the values of the head, arms, legs or forearms.
