Session 8 – notes

We started with a retake of one of the problems from last time: we want to normalize the following relation into BCNF:

===========================================
movies(title, year, length, category, star)
-------------------------------------------
fd1: title year star -> length category
fd2: title year -> length category
===========================================

We first found the key of the relation – since neither of title, year, and star is in the right hand side af any dependency, we need to have them all in the key. And since we can get length and category from them, they are a key, and the only possible key:

===========================================
movies(title, year, length, category, star)
-------------------------------------------
fd1: title year star -> length category
fd2: title year -> length category
key: title year star
===========================================

We're not in BCNF since fd2 has a left hand side which is not a superkey (so several rows with the same values of title and year can occur, and each time we repeat the same length and category).

So we broke out this dependency into its own relation:

=========================================
movie_info(title, year, length, category)
-----------------------------------------
fd: title year -> length category
key: title year
=========================================

Here title, year is a key, so each combination can only occur once, and the only functional dependency has a left hand side which is a superkey, so we're in BCNF.

Given the movie_info table, we can always look up the values of length and category if we only have title and year, so we can remove length and category from our original relation, and then get:

==============================
movie_stars(title, year, star)
------------------------------
fd: {}
key: title year star
==============================

Both of these are in BCNF, and we discussed at some length why, what it meant, and how to get there (see slides). We also tried this out in the notebook (you can download it and then run jupyter lab – observe that notebooks are JSON files, if you save them with a .ipynb extension, jupyter can run them).

We then proved that two-attribute relations, R(A,B), always are in BCNF. We did it by looking at what functional dependencies we might have:

• None: in this case we're in BCNF by default, since there's no FD which can break BCNF.
• A -> B: in this case our key is A, and our only FD has a left hand side which is a superkey.
• B -> A: in this case our key is B, and our only FD has a left hand side which is a superkey.
• A -> B and B -> A: in this case we have two candidate keys: A and B, and both our FD's have left hand sides which are superkeys, so we're in BCNF.

QED.

We then talked about reconstruction – the most important aspect of the algorithm we use for normalizing into BCNF, apart from producing relations in BCNF, is that we can easily reconstruct our original table by joining our new tables using the left hand sides of the FD's we've used to deconstruct.

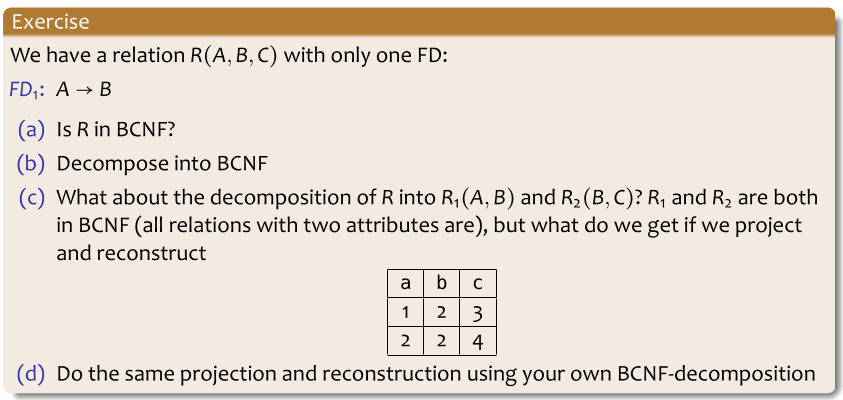

We looked at an exercise:

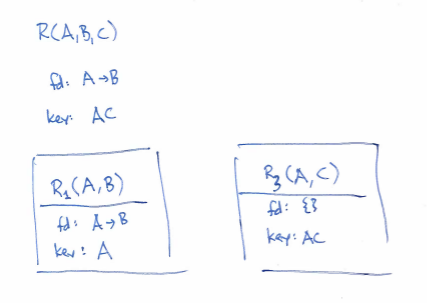

This is what I scribbled

So, using

==============================
R1(A,B)
------------------------------
fd: A -> B
key: A
==============================

and

==============================
R2(A,C)
------------------------------
fd: -
key: AC
==============================

should work.

We tried it in the notebook, where we had the table

which can be implemented as:

DROP TABLE IF EXISTS R;
CREATE TABLE R (
  a   INT,
  b   INT,
  c   INT
);

INSERT
INTO   R(a,b,c)
VALUES (1,2,3),
       (2,2,4);

To create R1 and R2 from above, we can run:

CREATE TABLE R1 AS
SELECT DISTINCT a, b
FROM   R;
CREATE INDEX r1key ON R1(a);

CREATE TABLE R2 AS
SELECT DISTINCT a, c
FROM   R;

giving:

and then recombine them into one table:

SELECT    a, b, c
FROM      R1
          JOIN R2 USING (a)

which returns:

This is an exact replica of the table we started with!

We also tried the ad-hoc decomposition:

==============================
R1(A,B)
------------------------------
fd: A -> B
key: A
==============================

and

==============================
R2(B,C)
------------------------------
fd: -
key: BC
==============================

As we saw above, these relations will both be in BCNF by virtue of being two-attribute relations, but since we haven't used our BCNF-decomposition recipe, we have no guarantee that we can reconstruct our original relation.

We can create the table R2 using:

CREATE TABLE R2 AS
SELECT DISTINCT b, c
FROM   R;

and it will be:

But when we join it with R1:

SELECT    a, b, c
FROM      R1
          JOIN R2 USING (b)

we get:

which is not at all what we started out with!

So, using other decompositions than that which our algorithm gives us can result in tables which we can't reconstruct into our original table.

We've seen that there are several Normal Forms, and sometimes 3NF can be useful – if we accept tables which are in 3NF, but not all the way into BCNF, we can sometimes keep FD's which can't be kept in BCNF, see the notebook for an example (the bookings table).

Some of the slides towards the end discuss 4NF, which is a generalization of BCNF, where we use multivalued dependencies instead of functional dependencies – we want you to be aware of 4NF, but we won't use it in the course.

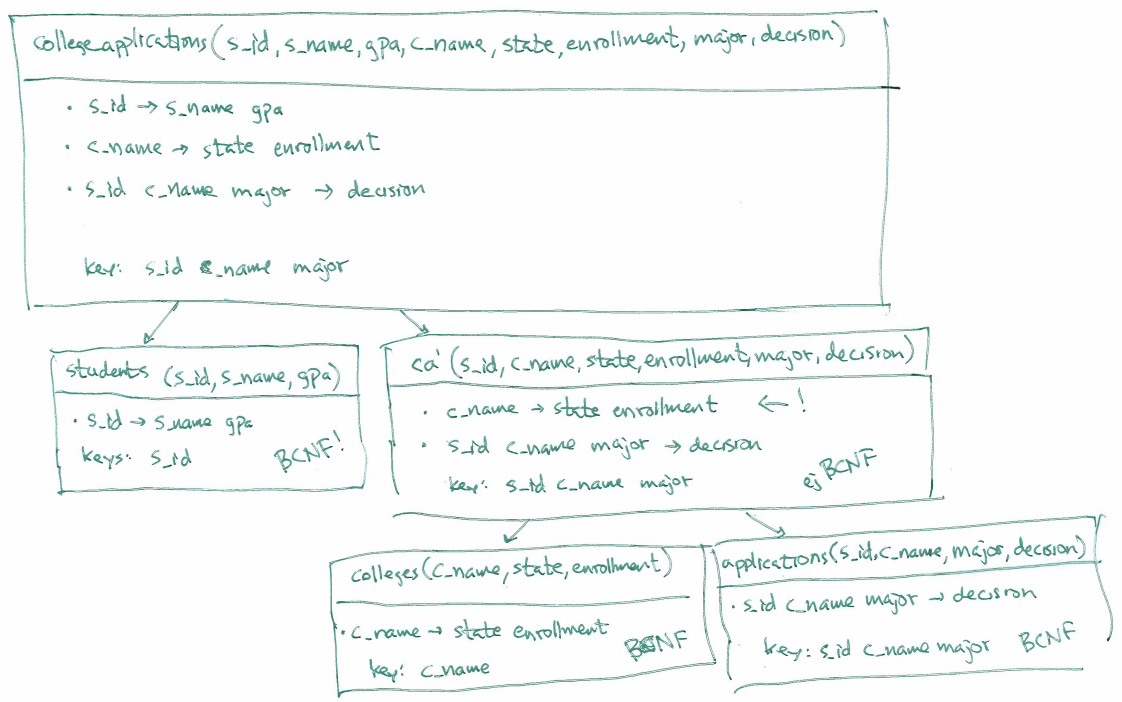

Near the end, I started to normalize the student application database we've seen since lecture 2, we started out with one big table, and identified the functional dependencies.

As you can see, the three tables we come up with after the final step, called students, colleges and app'', are the same as the ones we got when we created an ER-model in week 2.

In this case our three final tables happens to contain the same atttributes as our three functional dependencies, but that's 'by coincidence'. Just writing down three relations with the attributes of our functional dependencies will not guarantee that we can reproduce our original relation – only by following our 'recipe' can we be sure to get relations which we can recombine into our original table (on exams, some students just write down relations with the attributes of the functional dependencies, and they may or may not be the same tables we would get if we followed the 'recipe', but a solution without a correct derivation will give zero points, since it gives no guarantee whatsoever that we can recombine our tables into the original).

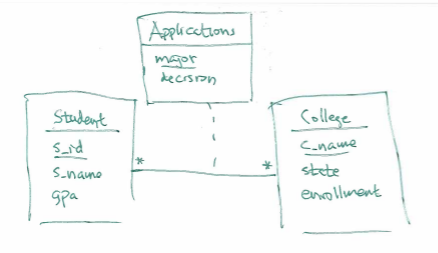

Earlier we've seen an ER-diagram for the applications:

If we translate this into tables, as we did in week 2, we would get exactly the same tables as we got when we normalized into BCNF.

Exercise: We can add some more functional dependencies to this example. As we saw during lecture 5, majors can be described by how many credits they give, and they have a more precise name than those we use in our tables. Also: not every major is given at every college, and each college has its own enrollment for each given major. This gives us the following two functional dependencies:

==============================
+ major -> credits full_name
+ major c_name -> enrollment
==============================

Given these dependencies, our tables above are not in BCNF anymore – normalize them into BCNF.
